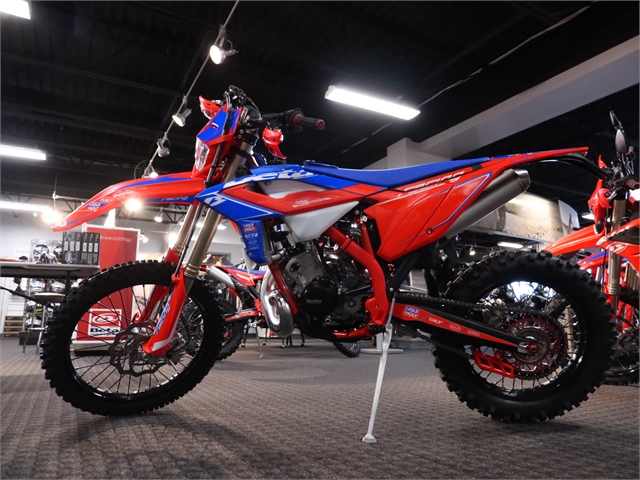

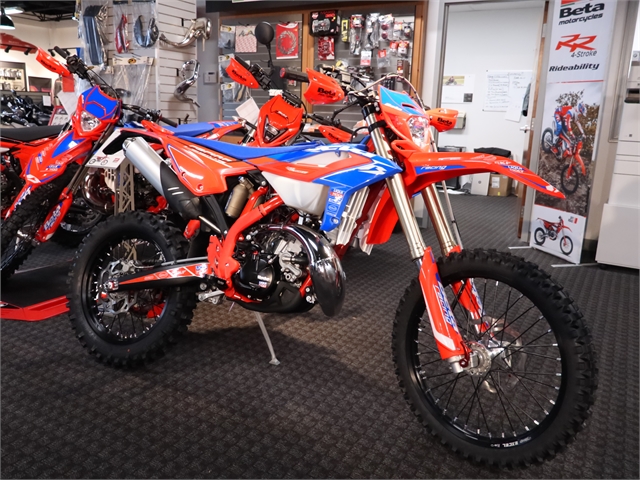

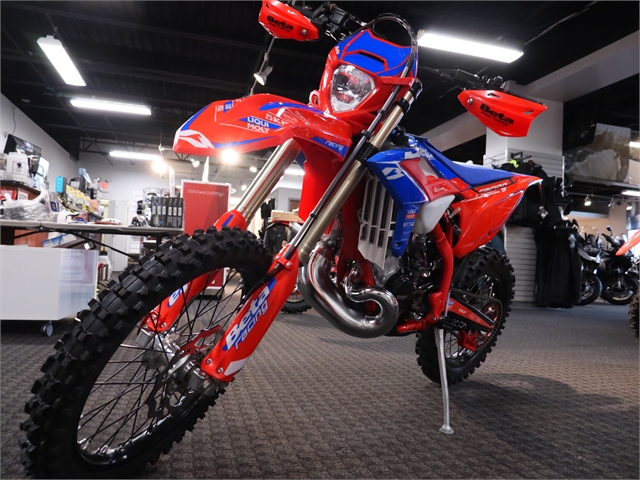

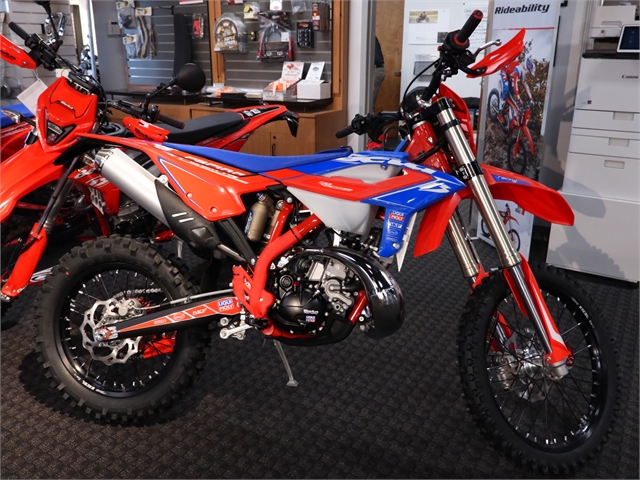

2023 BETA 200 RR Race Edition
Stock #100152
MSRP: $9,799 USD
Chassis Specifications
- Frame: Molybdenum steel / Double Cradle w/ quick air filter access
- Wheelbase: 58.1"
- Seat Height: 36.6"
- Ground Clearance: 12.8"
- Footrest Height: 16.1"
- Dry Weight: 211.5 lbs (wet weight, no fuel)
- Fuel Tank Capacity: 2.5 US Gallons
- Front Suspension: 48 mm KYB AOS Open Cartridge with adjustable compression & rebound
- Rear Suspension: KYB 45 mm body with adjustable reboundand high/low speed on compression adjustment
- Front Wheel Travel: 11.6"
- Rear Wheel Travel: 11.4"
- Front Brake: 260 mm floating rotor
- Rear Brake: 240 mm rotor
- Front/Rear Rim: 21" (Front) 18" (Rear)
- Front/Rear Tire: Metzeler Six Day Off Road
Engine Specifications
- Type: Beta Built single cylinder, 2-stroke, liquid cooled, with BPV power valve system, and electric start with back up kick starter sold as an option
- Bore: 62mm
- Stroke: 63mm
- Displacement: 190.2cc
- Compression Ratio: 13.5:1
- Exhaust Valve: Beta Progressive Valve (BPV)
- Ignition: AC-CDI Kokusan
- Spark Plug: NGK BR9ECM
- Lubrication: Pre-Mix
- Carburetor: Kelhin PWK 36mm
- Clutch: Wet Mulit-Disc
- Transmission: 6 Speed
- Final Drive: O-ring chain
NOTES:
*Specifications subject to change without notice. Additional information on all models including manuals,accessories and parts books are available online at www.betausa.com under SUPPORT. **This model is for competition use only
- Status:New
- Vehicle:2023 BETA 200 RR Race Edition
- VIN:ZD3E4E760P0100152
- Mileage:6 miles
- Color:RED / WHT / BLUE
- Stock Number:100152
- Title:Clear
- Location:Frontline Eurosports
- Warranty:Manufacturer's w/ Extended Available
BRAKES
- Front Brake Diameter (in):10.2
- Front Brake Diameter (mm):260
- Front Brake Type:Hydraulic Disc
- Rear Brake Diameter (in):9.4
- Rear Brake Diameter (mm):240
- Rear Brake Type:Hydraulic Disc
ENGINE
- Bore (in):2.44
- Bore (mm):62
- Carburetion Brand:Keihin
- Carburetion Type:Carburetor
- Carburetor Size (mm):36
- Carburetor:Yes
- Compression Ratio:13.5
- Cooling:Liquid
- Cylinders:1
- Displacement (cc):190.2
- Displacement (ci):11.6
- Engine Stroke:2-Stroke
- Engine Type:Single-Cylinder
- Fuel Requirements:Regular
- Fuel Type:Gas / Oil Premix
- Number Of Carburetors:1
- Starter:Electric
- Stroke (in):2.48
- Stroke (mm):63
- Valve Configuration:Reed Valve
EXTERIOR
- Body Material:Plastic
- Chain Guard:Yes
- Exhaust Guard:Yes
- Foot Peg Location:Driver
- Fork Guards:Yes
- Frame:Chromium Molybdenum
- Hand Guards:Yes
- Stand Type:Kick
LIGHTS
- Type:Halogen
SEATS
- Number Of Seats:1
- Seat Height (in):36.6
- Seat Height (mm):929.6
- Seat Location:Driver
- Seat Material:Vinyl
- Seat Type:One-Piece
STEERING
- Steering Control:Handlebar
SUSPENSION
- Front Adjustable Fork Pre-Load:Yes
- Front Adjustable Rebound Damping:Yes
- Front Suspension Brand Name:KYB
- Front Suspension Size (in):1.9
- Front Suspension Size (mm):48
- Front Suspension Type:Inverted Fork
- Front Travel (in):11.6
- Front Travel (mm):294.6
- Number Rear Shock Absorbers:1
- Rear Adjustable Rebound Damping:Yes
- Rear Adjustable Shock / Spring Pre-Load:Yes
- Rear Suspension Brand Name:KYB
- Rear Suspension Material:Aluminum
- Rear Suspension Size (in):1.8
- Rear Suspension Size (mm):45
- Rear Suspension Type:Twin Sided Swing Arm
- Rear Travel (in):11.4
- Rear Travel (mm):289.6
TECHNICAL SPECIFICATIONS
- Dry Weight (kg):95.9
- Dry Weight (lbs):211.5
- Engine Displacement to Weight (cc):0.9
- Fuel Capacity (gal):2.5
- Fuel Capacity (l):9.5
- Ground Clearance (in):12.8
- Ground Clearance (mm):325.1
- Wheelbase (in):58.1
- Wheelbase (mm):1475.7
TRANSMISSION
- Number Of Speeds:6
- Primary Drive (Rear Wheel):Chain
- Transmission Type:Manual
WHEELS & TIRES
- Front Tire (Full Spec):Metzeler R21
- Front Wheel Diameter:21
- Front Wheel Width (in):1.6
- Rear Tire (Full Spec):Metzeler R18
- Rear Wheel Diameter:18
- Rear Wheel Width (in):1.85
- Tire Brand:Metzeler
- Tube / Tubeless:Tubed
