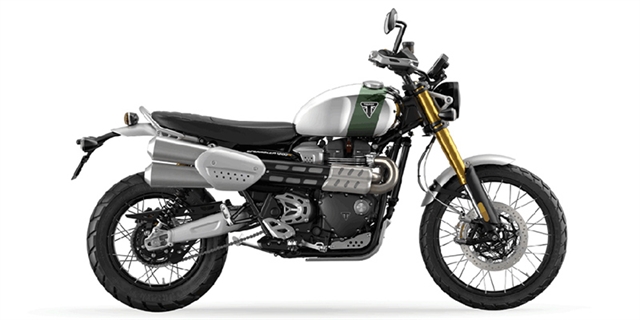

2023 Triumph Scrambler 1200 XE Chrome Edition
Chrome Edition
Stock #BJ0977
MSRP: $16,995 USD
Flawlessly finished with a beautiful chrome tank, bespoke paintwork and brushed aluminum detailing, this special edition Scrambler is available for just one year.
Key Features
- Chrome Tank: Fully chromed, the distinctive Scrambler fuel tank is finished with a stylish Brooklands Green stripe.
- Brushed Aluminum Detailing: Brushed aluminum mudguards and silencer heat shield complement the gleaming chrome perfectly.
- Jet Black Features: The Jet Black headlight bowl and side panels provide the perfect contrast to the premium metallic finishes.
- Chrome Edition Accessory Kit: To complete the full-on Scrambler style, a high-level front mudguard is available as an accessory option, which also features in the dedicated Scrambler 1200 XE Chrome Edition Accessory Kit.
- Scrambler Power: Tuned specifically for the Scrambler, with smooth tractable power for every ride, from commuting to epic tours and beyond.
- Class Leading Technology: Cruise control, ride-by-wire, Scrambler-specific riding modes, ABS and easy-to-read TFT instruments bring class-leading technology to this modern classic.
Engine & Transmission
- Type: Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel-twin
- Capacity: 1200 cc
- Bore: 3.84 in. (97.6 mm)
- Stroke: 3.15 in. (80 mm)
- Compression: 11.0:1
- Max Power EC: 89Hp (66.2kW) @7,400rpm
- Max Torque EC: 81.1 FT-lb. (110Nm) @ 3,950 rpm
- System: Multipoint sequential electronic fuel injection
- Exhaust: Brushed 2 into 2 exhaust system with brushed high level silencers
- Final Drive: X ring chain
- Clutch: Wet, multi-plate assist clutch
- Gearbox: 6-speed
Chassis
- Frame: Tubular steel with aluminum cradle
- Swingarm: Twin-sided, aluminum
- Front Wheel: Tubeless 36-spoke 21 x 2.15in, aluminum rims
- Rear Wheel: Tubeless 32-spoke 17 x 4.25in, aluminum rims
- Front Tire: 90/90-21
- Rear Tire: 150/70 R17
- Front Suspension: Showa 47mm fully adjustable upside down forks, 250mm travel
- Rear Suspension: Fully adjustable Ohlins twin shocks with piggy back reservoir, 250mm rear wheel travel
- Front Brakes: Twin 320mm Brembo discs, Brembo M50 4-piston radial monobloc calipers, ABS
- Rear Brakes: Single 255mm disc, Brembo 2-piston floating caliper, ABS
- Instrument Display and Functions: TFT multifunctional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gauge, service indicator, clock and rider modes (Rain/Road/Sport/Off-road/Rider-Configurable)
Dimensions & Weights
- Width Handlebars: 35.6 in. (905mm)
- Height Without Mirror: 49.2 in. (1250mm)
- Seat Height: 34.2 in. (870mm)
- Wheelbase: 61.8 in. (1570mm)
- Rake: 26.9 º
- Trail: 5.09 in. (129.2mm)
- Dry Weight: 456 lb. (207kg)
- Tank Capacity: 4.2 US gal (16l)
Fuel Consumption
- Fuel Consumption: 51.1 mpg (4.6 L / 100km)
Service
- Service Interval: 10,000 miles/12 months service interval, whichever comes first
- Status:New
- Vehicle:2023 Triumph Scrambler 1200 XE Chrome Edition
- VIN:SMTD51HG6PTBJ0977
- Model Number:SCRAMBLER1200XECE
- Mileage:10 miles
- Color:Chrome / Brooklands Green
- Stock Number:BJ0977
- Title:Clear
- Location:Frontline Eurosports
- Warranty:Manufacturer's w/ Extended Available
BRAKES
- Brake Brand Name:Brembo®
- Front Brake Diameter (in):12.6
- Front Brake Diameter (mm):320
- Front Brake Type:Dual Hydraulic Disc
- Rear Brake Diameter (in):10
- Rear Brake Diameter (mm):255
- Rear Brake Type:Hydraulic Disc
ENGINE
- Bore (in):3.84
- Bore (mm):97.6
- CAN Liters Per Kilometer (Combined):4.6
- Carburetion Type:Fuel Injected
- Compression Ratio:11.0
- Cooling:Liquid
- Cylinders:2
- Displacement (cc):1200
- Displacement (ci):73.2
- Engine Stroke:4-Stroke
- Engine Type:Parallel Twin
- Fuel Injector:Yes
- Fuel Requirements:Regular
- Fuel Type:Gas
- Horsepower (bhp):89
- Horsepower (kW):66.2
- Horsepower RPM:7400
- Starter:Electric
- Stroke (in):3.15
- Stroke (mm):80
- Torque (Ft Lbs):81.1
- Torque (Nm):110
- Torque RPM:3950
- US Miles Per Gallon (Combined):51.1
- Valve Configuration:SOHC
- Valves Per Cylinder:4
- Valves:8
EXTERIOR
- Foot Peg Location:Driver and Passenger
- Fork Guards:Yes
- Frame:Aluminum / Steel
- Hand Guards:Yes
- Side Cover:Yes
- Stand Type:Kick
GLASS
- Folding:Yes
INSTRUMENTATION
- Fuel Level Warning Type:Gauge
- Temperature Warning Type:Light
LIGHTS
- Type:LED
SEATS
- Number Of Seats:2
- Seat Height (in):34.2
- Seat Height (mm):870
- Seat Location:Driver and Passenger
- Seat Material:Vinyl
- Seat Type:One-Piece
STEERING
- Steering Control:Handlebar
SUSPENSION
- Front Suspension Brand Name:Showa®
- Front Suspension Size (in):1.9
- Front Suspension Size (mm):47
- Front Suspension Type:Inverted Fork
- Front Travel (in):9.8
- Front Travel (mm):250
- Number Rear Shock Absorbers:2
- Rear Adjustable Shock / Spring Pre-Load:Yes
- Rear Suspension Brand Name:Ohlins®
- Rear Suspension Material:Aluminum
- Rear Suspension Type:Twin Sided Swing Arm
- Rear Travel (in):9.8
- Rear Travel (mm):250
TECHNICAL SPECIFICATIONS
- Dry Weight (kg):207
- Dry Weight (lbs):456
- Engine Displacement to Weight (cc):2.63
- Fuel Capacity (gal):4.2
- Fuel Capacity (l):16
- Height (in):49.2
- Height (mm):1250
- Length (ft):7.62
- Length (ft/ft):7
- Length (ft/in):7.5
- Length (in):91.5
- Length (mm):2325
- Wheelbase (in):61.8
- Wheelbase (mm):1570
- Width (in):35.6
- Width (mm):905
TRANSMISSION
- Number Of Speeds:6
- Primary Drive (Engine / Transmission):Gear
- Primary Drive (Rear Wheel):Chain
- Transmission Type:Manual
WHEELS & TIRES
- Front Tire (Full Spec):Metzler Tourance
- Front Tire Aspect Ratio:90
- Front Tire Width:90
- Front Wheel Diameter:21
- Front Wheel Width (in):2.15
- Rear Tire (Full Spec):Metzler Tourance
- Rear Tire Aspect Ratio:70
- Rear Tire Width:150
- Rear Wheel Diameter:17
- Rear Wheel Width (in):4.25
- Tire Brand:Metzeler
- Wheels Composition:Aluminum
